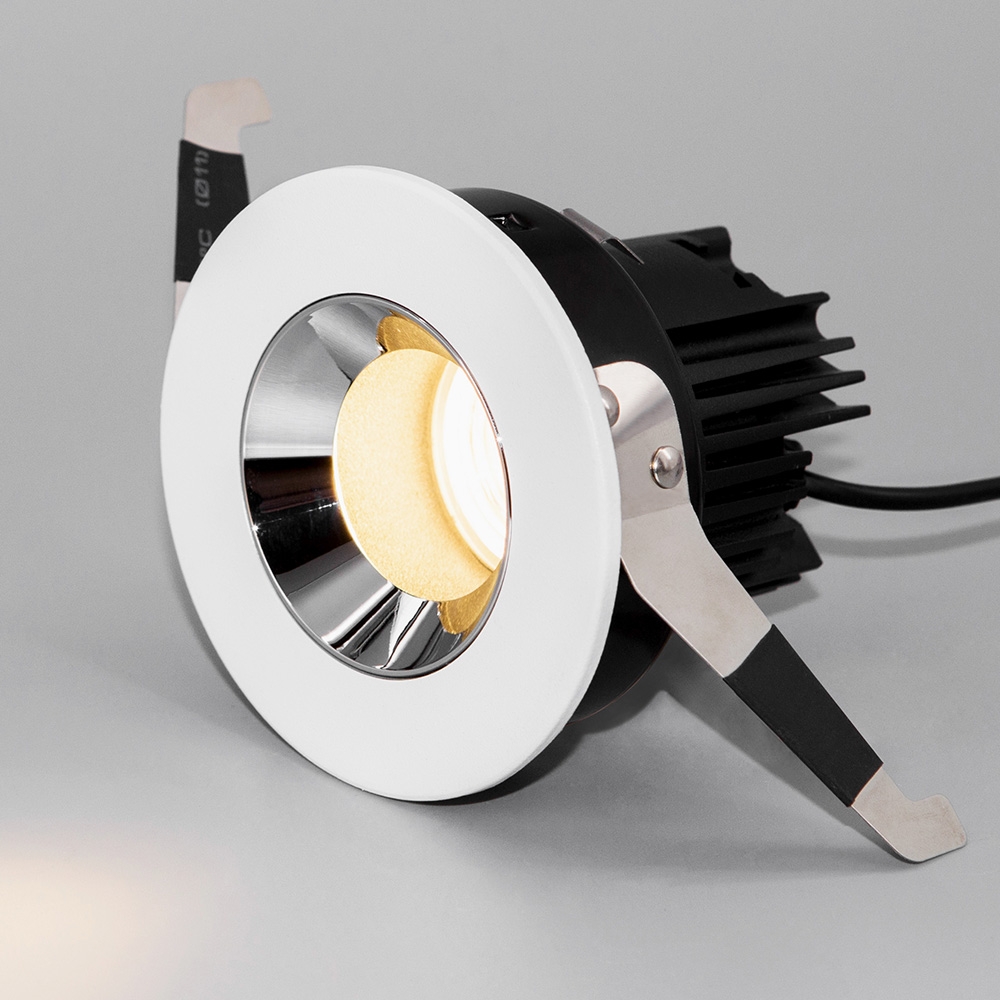

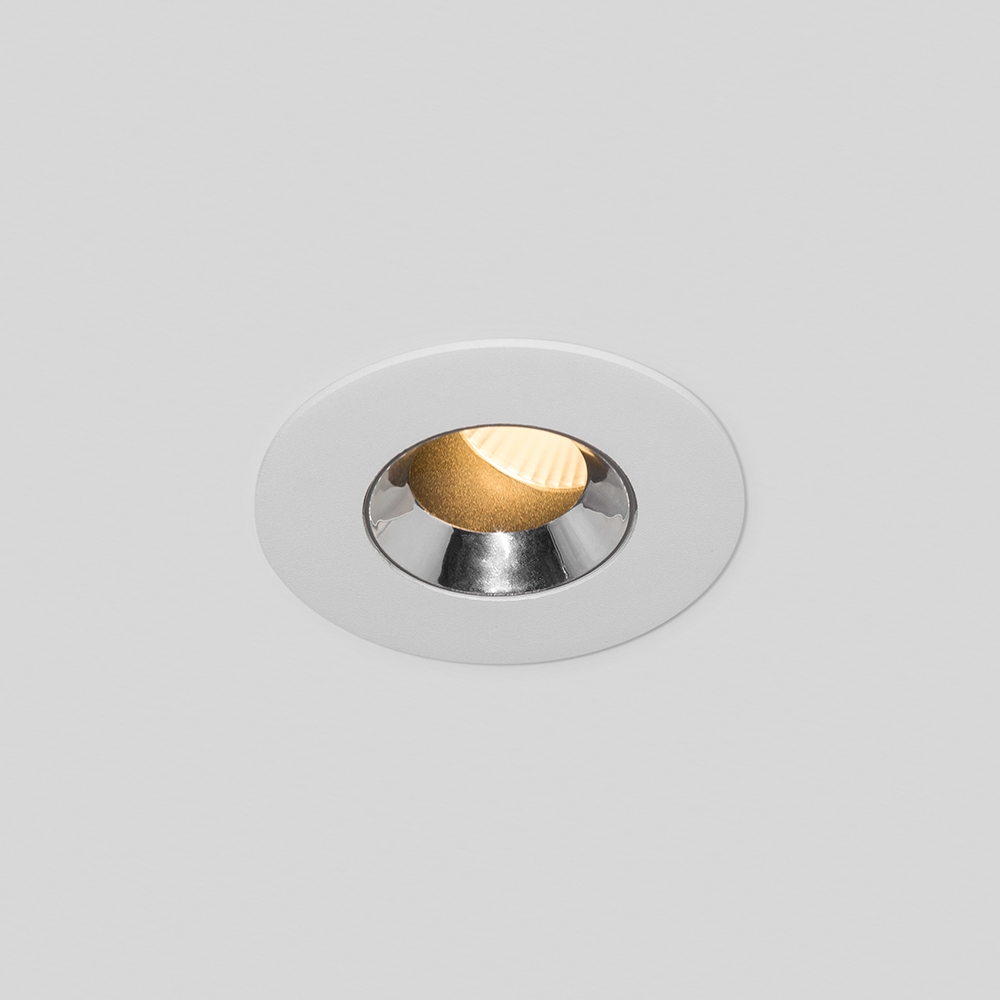

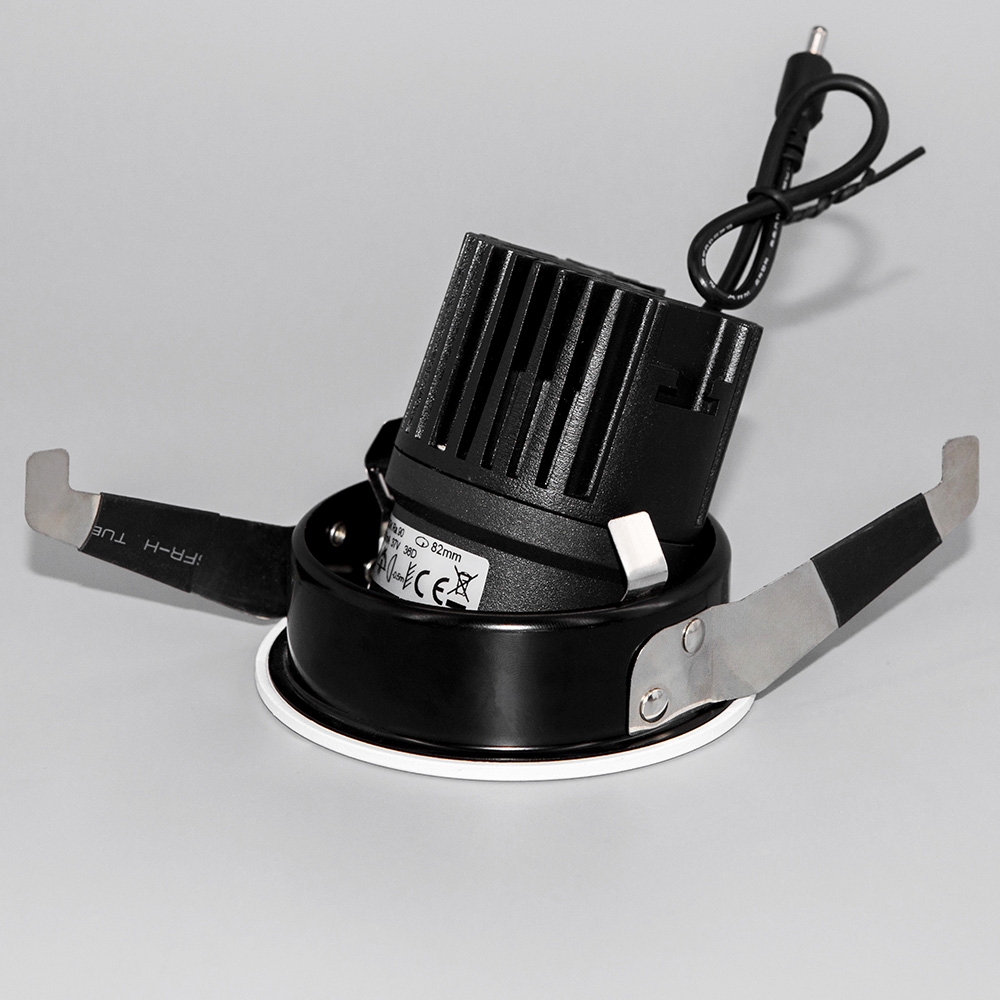

Mini Reflector
FAVORITE
All Products
Mini Reflector
Mini Reflector
Mini Reflector
Mini Reflector
Mini Reflector
Model: DL3059
System wattage:
10W (250mA, 36V)
Colour temperature:
2700K, 3000K, 4000K
Colour rendering index:
Ra≥80, Ra≥90
Color:
Product Advisory
355D rotate, 25D tilt; Low UGR design; Easy maintenance;
Specification
Light source
Cree CXA1507
System wattage
10W (250mA, 36V)
Lumen flux
700lm(10W, 36D, 3000K, Ra.90)
Colour temperature
2700K, 3000K, 4000K
Colour rendering index
Ra≥80, Ra≥90
Chromaticity rate
3 MacAdam
Beam angle
15D, 24D, 36D, Lens Type
Service lifetime
50,000hrs, L70
Ingress protection
IP54 Installed
Operation voltage
220-240Vac, 50/60Hz
Operation temperature
-20~40D
Protection class
III
Finishing
White RAL9003, Gloss 5 Black RAL9005, Gloss 5
Baffle
White, black, chrome, dark chrome
Construction
Aluminum, Polycarbonate
Mounting
Ceiling Recessed, clip type
Warranty
5 years
Lighting control
Tridonic non-dim, ECG standard Actec triac dim 0-10V, Dali diming upon request
