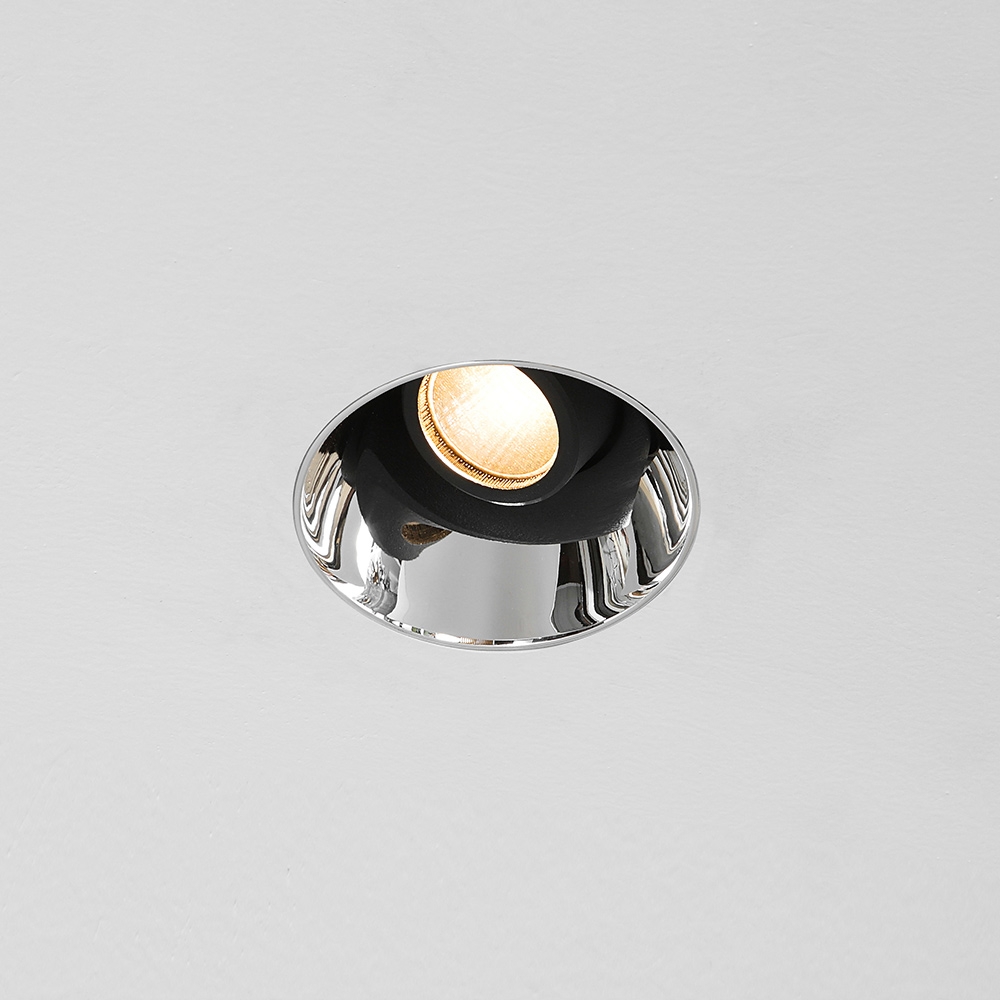

Tilt Trimless 82

All Products

Tilt Trimless 82

Model: DL3197

System wattage:

13W (350mA, 31V)

Colour temperature:

2700K, 3000K, 4000K

CRI:

Ra≥80, Ra≥90

Color:

Product Advisory

Fix & tilt combined design; Trimless; 355 degree rotate & 30 degree big tilt; Even beam; Very low UGR;

View favorite

Specification

Light source

Citizen 701

System wattage

13W (350mA, 31V)

Lumen flux

800lm (36D, 2700K, Ra.90)

Colour temperature

2700K, 3000K, 4000K

Colour rendering index

Ra≥80, Ra≥90

Chromaticity rate

3 MacAdam

Beam angle

15D, 24D, 36D, Reflector Type

Service lifetime

50,000hrs, L70

Ingress protection

IP54 Installed

Operation voltage

220-240Vac, 50/60Hz

Operation temperature

-20~+40D

Protection class

III

Finishing

White RAL9003, Gloss 5; Black RAL9005, Gloss 5

Construction

Aluminum, PC

Mounting

Ceiling Recessed, trimless type

Warranty

5 years

Lighting control

Tridonic non-dim, ECG standard Actec triac dim 0-10V, Dali diming upon request

Baffle

White, black, chrome, dark chrome
