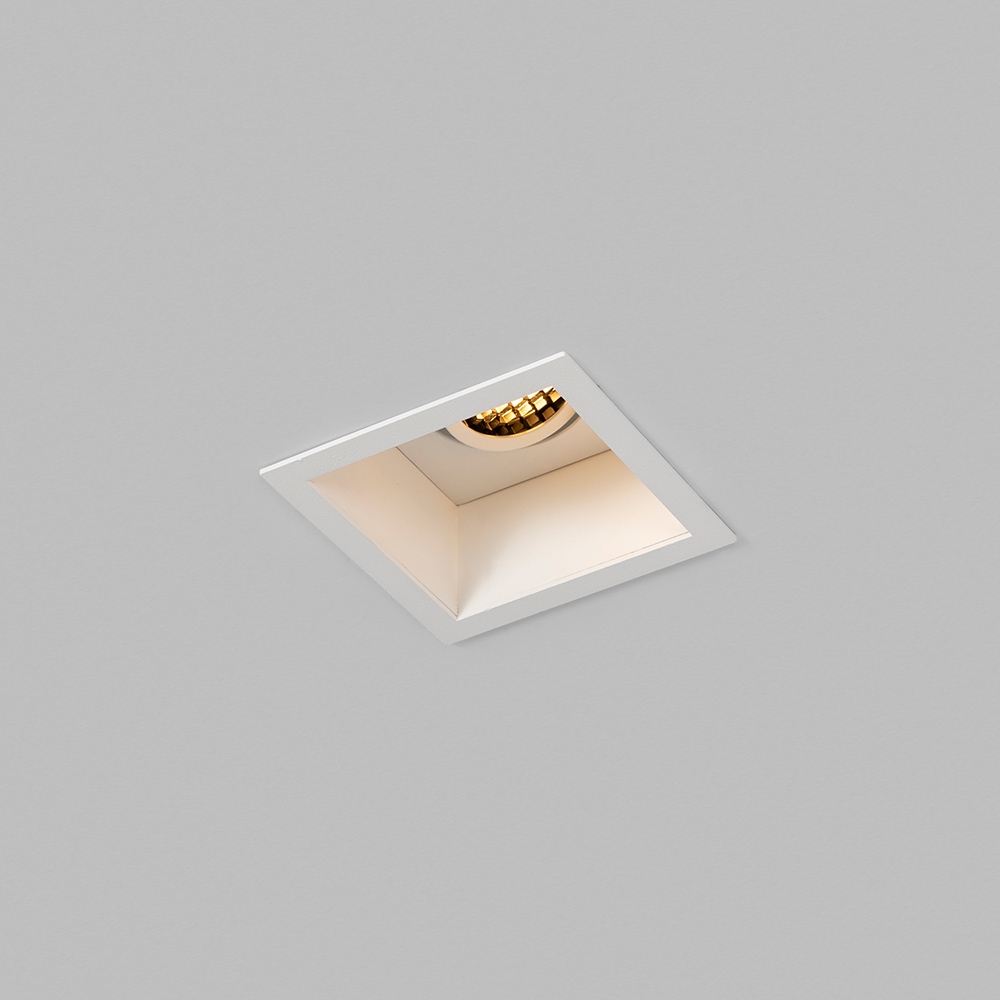

Tilt Square 62
FAVORITE
All Products
Tilt Square 62
Tilt Square 62
Tilt Square 62
Tilt Square 62
Model: DL3210
System wattage:
8W (200mA, 36V)
Colour temperature:
2700K, 3000K, 4000K
CRI:
≥90
Color:
Product Advisory
Deep built downlight; 360 degree rotate & 25 degree tilt; Easy maintainence;
Specification
Light source
Citizen CLU028
System wattage
8W (200mA, 36V)
Lumen flux
500lm (8W, 36D, 2700K, Ra.90)
Colour temperature
2700K, 3000K, 4000K
Colour rendering index
Ra≥90
Chromaticity rate
3 MacAdam
Beam angle
15D, 24D, 36D, Reflector Type
Service lifetime
50,000hrs, L70
Ingress protection
IP54 Installed
Operation voltage
220-240Vac, 50/60Hz
Operation temperature
-20~40D
Protection class
III
Finishing
White RAL9003, Gloss 5; Black RAL9005, Gloss 5
Construction
Aluminum
Mounting
Ceiling Recessed, spring type
Warranty
5 years
Lighting control
Tridonic non-dim, ECG standard Actec triac dim 0-10V, Dali diming upon request
